Single Girder EOT Crane Manufacturers in Ahmedabad

Our single girder EOT cranes cover 1 to 20 ton and suit most workshops, warehouses and assembly bays. They are built at our GIDC Vatva works in Ahmedabad and installed by our own team.

Single Girder EOT Crane Manufacturers in Ahmedabad, Ganesh Engineering Co.

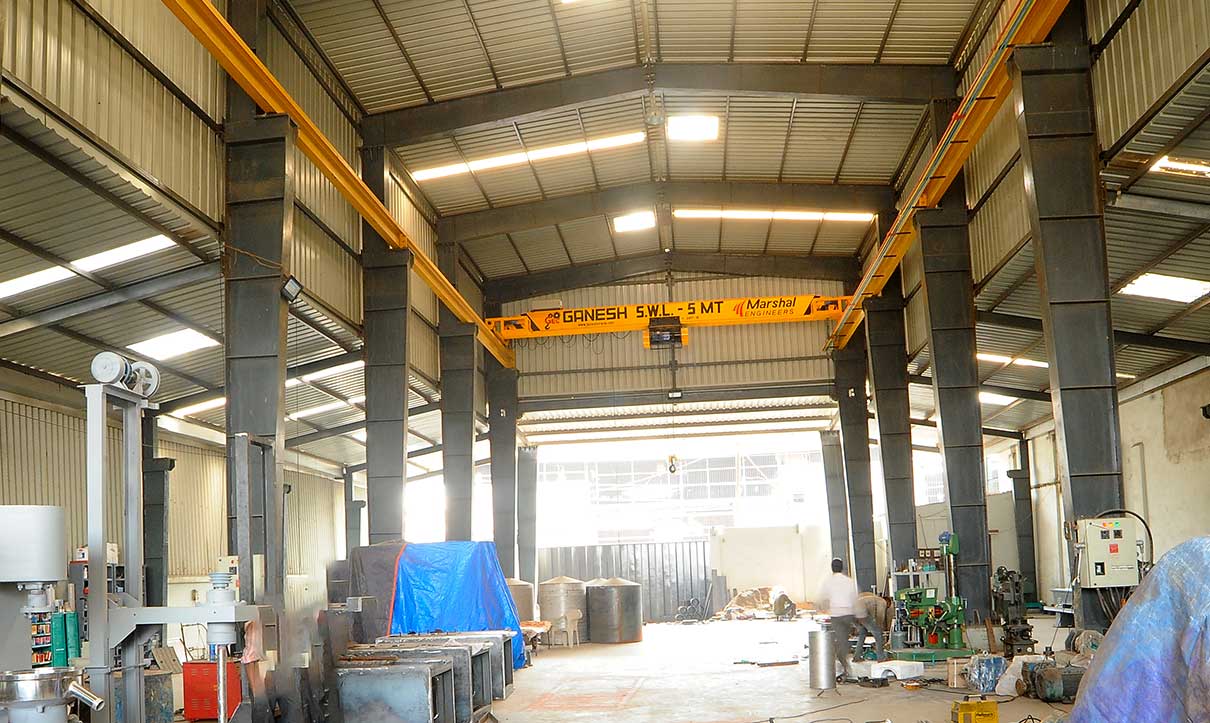

Single Girder EOT Crane by Ganesh Engineering Co., GIDC Vatva, Ahmedabad

Single Girder EOT Crane videos

5 ton single girder EOT crane installed in Ludhiana, span 13.775 m
Single girder EOT crane by Ganesh Engineering

Single Girder EOT Crane Manufacturers in Ahmedabad: Engineering Overview & Technical Capabilities

Single girder EOT cranes built by Ganesh Engineering Co. in GIDC Vatva, Ahmedabad deliver compact, cost-effective overhead lifting from 1 Ton to 20 Ton. Utilizing a single torsionally rigid box girder or rolled beam section, these systems reduce deadweight on building columns by up to 35% compared to twin girder cranes, making them ideal for light to medium manufacturing bays, tool rooms, and PEB sheds. For technical proposals, detailed bay arrangement layouts, and direct factory pricing, call our engineers at +91-9824089366 or submit your required capacity and span below.

Single Girder EOT Crane configurations we build

1

Underslung hoist

Wire rope hoist runs below the girder. The most common build for 1 to 10 ton.

2

Low headroom hoist

Hoist body sits beside the girder to gain hook height in sheds with a low roof.

3

Box girder design

Fabricated box girder for longer spans and stiffer deflection limits.

Single Girder EOT Crane specifications

Capacity1 Ton to 20 Ton
Crane typeSingle girder
SpanMade to your bay width
HoistElectric wire rope hoist
OperationPendant or radio remote
SafetyOverload protection, limit switches
Design standardsIS 807, IS 800, IS 3177, IS 4137

Single Box Girder Deflection & Low-Headroom Hoist Mechanics

Single girder cranes optimize workshop usable volume by maximizing hook approach while limiting structural reactions on elevated gantry brackets:

Key Structural Features of Ganesh Single Girder Cranes

1

Torsionally Stiff Box Girder

Fabricated box girder designed with internal vertical and horizontal diaphragms to IS 800 standards. Girder deadweight is minimized while deflection is limited strictly within 1/750th of span.

2

Low-Headroom Hoist Trolleys

Low-headroom wire rope hoist configuration mounts the rope drum and motor beside the girder bottom flange rather than directly beneath it, reclaiming 350 mm to 550 mm of vertical hook travel.

3

Dual-Drive End Carriages

Both end carriages feature independent motor-gearbox drives, eliminating cross-shaft torsional deflection and ensuring smooth, non-skewing long travel along 40 lb/yd to 60 lb/yd crane rails.

4

Class II / M5 Hoisting Duty

Equipped with S4 crane-duty squirrel cage induction motors (40% CDF, 150 starts/hour), mechanical overload friction clutches, and fail-safe dual-disc electro-mechanical brakes.

Where single girder EOT cranes are used

  • Workshops and tool rooms
  • Warehouses and stores
  • Assembly lines
  • Light fabrication bays
  • Pump and motor manufacturing
  • Plastic and packaging plants

Single Girder EOT Crane manufacturer, supplier and exporter

Manufacturer in Ahmedabad

Fabricated at our GIDC Vatva works, single girder bridge beams undergo automated submerged arc welding with built-in upward camber matching girder deadweight. End carriages are line-bored on horizontal boring machines to guarantee wheel axis parallelism, preventing rail flange scrub and premature track wear. Learn more about us as an EOT crane manufacturer in Ahmedabad.

Supplier across Gujarat

Our installation engineers regularly erect and commission single girder EOT cranes across Gujarat manufacturing hubs such as Naroda, Sanand, Changodar, Makarpura, Sachin GIDC, and Shapar-Veraval. Turnkey packages include runway alignment within +/-3mm tolerance. See all single girder EOT crane supply in Gujarat.

Exporter from India

For export clients, single girder bridge beams up to 24 meters are shipped on dedicated flat-rack containers or breakbulk carriers, accompanied by detailed electrical schematics, foundation reaction diagrams, and step-by-step erection manuals. Read more about single girder EOT crane manufacturers, suppliers and exporters in India.

How to choose the right single girder EOT crane

  • Verify your factory column bracket load capacity to determine if single girder weight savings are advantageous.
  • Check clear height between gantry rail top and lowest roof truss obstruction to decide between underslung or low-headroom hoist.
  • Select single speed or dual speed (1:4 ratio) hoisting for delicate die positioning and assembly tasks.
  • Specify runway length and current collection system (shrouded 4-pole DSL busbar or festoon cable system).

What is the price of a single girder EOT crane?

Single girder EOT crane pricing starts from approximately Rs. 1.5 Lakh for compact 1-2 Ton workshop units and ranges up to Rs. 22 Lakh for wide-span 20 Ton heavy box girder configurations. Lift height, VFD speed control, and runway length determine the final quotation. Send us your required capacity, bay span, and lift height by phone, WhatsApp, or through the enquiry form and our engineers will prepare a stamped quotation with delivery schedules.

Related

Related products

Double Girder EOT Crane manufacturers in Ahmedabad

Double Girder EOT Cranes

Heavy duty double girder overhead cranes from 5 to 100 ton with crab trolley and optional auxiliary hoist.

EOT Crane manufacturers in Ahmedabad

EOT Cranes

Single and double girder electric overhead travelling cranes from 1 to 100 ton, built for factory bays, warehouses and steel shops.

Wire Rope Hoist manufacturers in Ahmedabad

Wire Rope Hoists

Electric wire rope hoists from 1 to 20 ton with high tensile rope, for cranes and monorails.

Electric Hoist manufacturers in Ahmedabad

Electric Hoists

Electric chain and wire rope hoists from 1 to 20 ton for workshops, jibs and monorails.

Single Girder EOT Crane FAQs

What is the maximum span and lifting capacity of a single girder EOT crane?

Our single girder EOT cranes are engineered for safe working loads from 1 Ton to 20 Ton with bay spans up to 28 meters. For longer spans, internal diaphragm-stiffened box girders limit full-load vertical deflection within 1/750th of span to IS 800 standards.

How does a low-headroom hoist configuration gain lift height in low-roof sheds?

In older or pre-engineered building (PEB) sheds with low roof clearances, our low-headroom hoist trolley positions the wire rope drum and motor beside the girder bottom flange rather than directly beneath it, regaining 350 mm to 550 mm of vertical hook travel.

What runway rail section is recommended for single girder overhead cranes?

Single girder cranes up to 10 Ton typically run on 40 lb/yd to 50 lb/yd crane rails, while 15 to 20 Ton cranes use 50 lb/yd or 60 lb/yd sections. We supply matching adjustable forged rail clamps and rubber impact pads.

Can single girder cranes be fitted with dual-speed hoisting for delicate assembly?

Yes. We provide dual-speed motors with a 1:4 speed ratio or variable frequency drives (VFD) that allow stepless micro-inching down to 0.2 m/min, ideal for mold spotting, die setting, and precision machining.

What is the manufacturing timeline and on-site installation duration?

Standard single girder cranes are fabricated and factory-tested at our GIDC Vatva works in 3 to 4 weeks. On-site erection, gantry laser rail alignment, and 125% proof load testing are completed within 2 to 3 working days by our factory crew.
