Jib Crane Manufacturers in Ahmedabad

A jib crane gives one workstation its own lifting point. We build pillar mounted and wall mounted jib cranes from 250 kg to 10 ton at our Ahmedabad works, with manual or electric slewing.

Jib Crane Manufacturers in Ahmedabad, Ganesh Engineering Co.

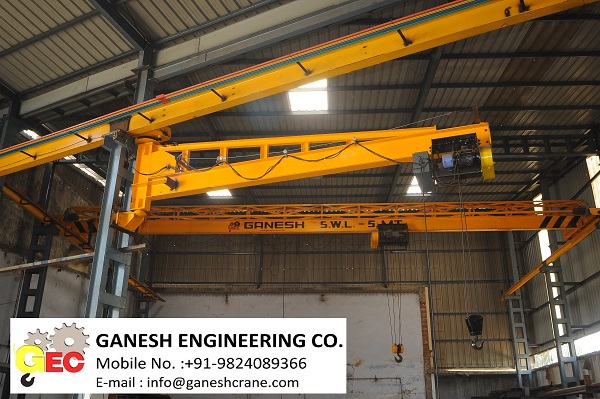

Jib Crane by Ganesh Engineering Co., GIDC Vatva, Ahmedabad

Jib Crane video

Jib crane by Ganesh Engineering

Jib Crane Manufacturers in Ahmedabad: Engineering Overview & Technical Capabilities

Jib cranes manufactured by Ganesh Engineering Co. in GIDC Vatva, Ahmedabad deliver dedicated workstation lifting from 250 Kg to 10 Ton. Providing 180-degree to 360-degree rotation, our pillar-mounted and wall-mounted slewing jib cranes eliminate bottlenecks by freeing up the main overhead travelling crane for cross-bay transport. For technical proposals, detailed bay arrangement layouts, and direct factory pricing, call our engineers at +91-9824089366 or submit your required capacity and span below.

Jib Crane configurations we build

1

Pillar mounted jib crane

Stands on its own foundation and can slew up to 360 degrees.

2

Wall mounted jib crane

Fixed to a building column or wall. Saves floor space, slews about 180 degrees.

3

Electric slewing jib crane

Motorised rotation for heavier loads and longer arms.

Jib Crane specifications

Capacity250 Kg to 10 Ton
MountingPillar or wall mounted
Rotation180 to 360 degrees
OperationManual or electric slewing
HoistElectric chain or wire rope hoist
MaterialHeavy duty structural steel
SafetyOverload protection

Slewing Bearing Geometry & Workstation Cantilever Dynamics

Jib cranes serve individual CNC machining cells, welding stations, and assembly lines with direct, independent hook coverage:

Key Structural Elements of Ganesh Jib Cranes

1

Structural Pillar Column

Heavy-wall seamless steel pipe or fabricated hollow section column anchored to the shop floor via a heavy circular base flange and high-tensile foundation anchor cage.

2

Precision Slewing Bearing

Heavy-duty slewing turntable bearing or pivot pin assembly with anti-friction thrust and radial bearings, offering manual hand-geared or motorized electric slewing rotation.

3

Cantilever Boom Beam

I-beam or fabricated box cantilever arm engineered for minimum end deflection under rated load. Boom radius options range from 2 meters to 8 meters with adjustable mechanical slew stops.

4

Hoisting & Travel Unit

Monorail electric wire rope hoist or electric chain hoist travelling along the boom flange, equipped with pendant controller or wireless remote and dual-axis travel limits.

Where jib cranes are used

  • CNC and machine loading
  • Workshop and maintenance bays
  • Truck and dock loading
  • Assembly stations
  • Foundry pouring and moulding
  • Die and mould handling

Jib Crane manufacturer, supplier and exporter

Manufacturer in Ahmedabad

Every jib crane boom is fabricated and deflection-tested at our GIDC Vatva works. Base flanges are flame-cut and precision faced to ensure absolute verticality of the pillar, guaranteeing smooth slewing rotation without drifting or boom binding. Learn more about us as an EOT crane manufacturer in Ahmedabad.

Supplier across Gujarat

We supply and anchor workstation jib cranes across industrial zones in Ahmedabad, Pune, Bengaluru, Coimbatore, and Hyderabad, installing them directly beneath existing overhead crane runways without interfering with cross-bay material flow. See all jib crane supply in Gujarat.

Exporter from India

Export jib cranes are shipped with knocked-down boom and column assemblies, complete with foundation bolt templates, anchor cage fabrication drawings, and pre-wired electrical slip-ring commutators. Read more about jib crane manufacturers, suppliers and exporters in India.

How to choose the right jib crane

  • Select between free-standing pillar mounted (360-degree slew) or wall-bracket mounted (180-degree slew) depending on floor space.
  • Determine boom reach radius and hook clearance required to clear machine tool enclosures.
  • Choose between manual arm slewing for lighter loads up to 2T or motorized slewing for heavy loads and long reaches.
  • Verify concrete floor thickness and foundation depth for pillar anchor cages.

What is the price of a jib crane?

Jib crane prices range from Rs. 85,000 for compact 500 Kg wall-mounted units up to Rs. 8.5 Lakh for heavy-duty 5-10 Ton motorized pillar-mounted jib cranes with long 7-meter boom reaches and electric wire rope hoists. Send us your required capacity, bay span, and lift height by phone, WhatsApp, or through the enquiry form and our engineers will prepare a stamped quotation with delivery schedules.

Related

Related products

Electric Hoist manufacturers in Ahmedabad

Electric Hoists

Electric chain and wire rope hoists from 1 to 20 ton for workshops, jibs and monorails.

Wire Rope Hoist manufacturers in Ahmedabad

Wire Rope Hoists

Electric wire rope hoists from 1 to 20 ton with high tensile rope, for cranes and monorails.

Hoist manufacturers in Ahmedabad

Hoists

Electric wire rope and chain hoists from 1 to 20 ton for cranes, monorails and fixed lifting points.

EOT Crane manufacturers in Ahmedabad

EOT Cranes

Single and double girder electric overhead travelling cranes from 1 to 100 ton, built for factory bays, warehouses and steel shops.

Jib Crane FAQs

What is the difference between a pillar-mounted and wall-mounted jib crane?

Pillar-mounted jib cranes are anchored to a dedicated floor foundation and provide full 360-degree continuous rotation. Wall-mounted jib cranes bolt onto existing factory columns or walls and offer 180-degree slewing without occupying any valuable shop floor space.

How is the concrete foundation designed for a 360-degree pillar jib crane?

Pillar jib cranes transfer high overturning bending moments to the floor. We provide foundation civil drawings specifying reinforced concrete pad dimensions, rebar cages, and precision bolt templates for high-tensile foundation anchors.

Can motorized slewing rotation be installed on workstation jib cranes?

Yes. For boom reaches over 5 meters or loads above 2 Ton, we equip the slewing head with an electric gearmotor drive and slip clutch, offering smooth, effortless push-button rotation without manual arm pulling.

What are the maximum capacity and arm reach limits for industrial jib cranes?

We build pillar jib cranes up to 10 Ton capacity with cantilever boom reaches up to 8 meters. Standard workstation sizes range from 250 Kg to 3 Ton with 3 to 6 meter arm reaches.

How does installing workstation jib cranes improve shop floor productivity?

Workstation jib cranes handle localized machine tool loading, welding fixture positioning, and part assembly independently. This eliminates operator waiting time for the main overhead travelling crane and prevents production bottlenecks.
